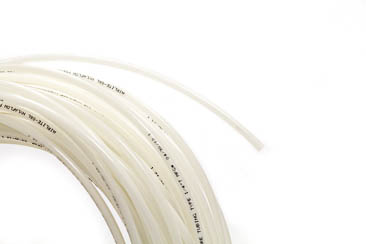

Picture of .19" ID x 1/4" OD NYLAFLOW, Nylon Tubing

.19" ID x 1/4" OD NYLAFLOW, Nylon Tubing

Available in 100', 500' Lengths
(Price Based on 500' Length)
Manufacturer: Airlite
Availability: Please select required attribute(s)
SKU: TN250-T2
*
$0.30
Generate Spec Sheet

Note: Advertised price per foot is based on 500' Spool



Nylaflow Tubing is one of the most common tubing used for Vapor Gas Sampling and Extraction. The high chemical resistance and burst pressure rating, make it ideal for a large variety of applications. Listed on the DTSC Guidelines as Nylaflo, Nylaflow is one of the few excepted tubings for vapor sampling. This Semi-Ridgid tubing holds up against the elements and has a wide spectrum of uses in many industries. Some uses include; Airlines. grease lines. vacuum lines, hydraulic lines, & high-pressure gas lines. Genuine Nylaflow Type T is FDA compliant and meets 3A sanitary standards. For questions about bulk orders, please call us at 888-511-4377

Specifications:

Tubing Material: 6/6 Nylon
Tubing Type: Nylaflow Type T
Tubing Color: Natural
Inside Diameter: .19"
Outside Diameter: .25" or 1/4"
Wall Thickness: .030"
Length: Various
Bursting Pressure: 1000 PSI at 73°F
Temp Range: -65°F - +150°F
Hoop Stress Bone Dry: 7500 PSI
Hoop Stress Full Sat: 3100 PSI
Acid Resistance: Good to pH-5
Alkaline Resistance: Good to pH-11

Chemical Resistance

Hydrocarbons-aromatic       Excellent
Hydrocarbons-aliphatic  Excellent
Ketones  Excellent
Ethers  Excellent
Alcohols Good
Salts. neutral  Excellent
freons  Excellent
Sunlight  Fair
Zinc chloride Poor

Description

Note: Advertised price per foot is based on 500' Spool



Nylaflow Tubing is one of the most common tubing used for Vapor Gas Sampling and Extraction. The high chemical resistance and burst pressure rating, make it ideal for a large variety of applications. Listed on the DTSC Guidelines as Nylaflo, Nylaflow is one of the few excepted tubings for vapor sampling. This Semi-Ridgid tubing holds up against the elements and has a wide spectrum of uses in many industries. Some uses include; Airlines. grease lines. vacuum lines, hydraulic lines, & high-pressure gas lines. Genuine Nylaflow Type T is FDA compliant and meets 3A sanitary standards. For questions about bulk orders, please call us at 888-511-4377

Specifications:

Tubing Material: 6/6 Nylon
Tubing Type: Nylaflow Type T
Tubing Color: Natural
Inside Diameter: .19"
Outside Diameter: .25" or 1/4"
Wall Thickness: .030"
Length: Various
Bursting Pressure: 1000 PSI at 73°F
Temp Range: -65°F - +150°F
Hoop Stress Bone Dry: 7500 PSI
Hoop Stress Full Sat: 3100 PSI
Acid Resistance: Good to pH-5
Alkaline Resistance: Good to pH-11

Chemical Resistance

Hydrocarbons-aromatic       Excellent
Hydrocarbons-aliphatic  Excellent
Ketones  Excellent
Ethers  Excellent
Alcohols Good
Salts. neutral  Excellent
freons  Excellent
Sunlight  Fair
Zinc chloride Poor
