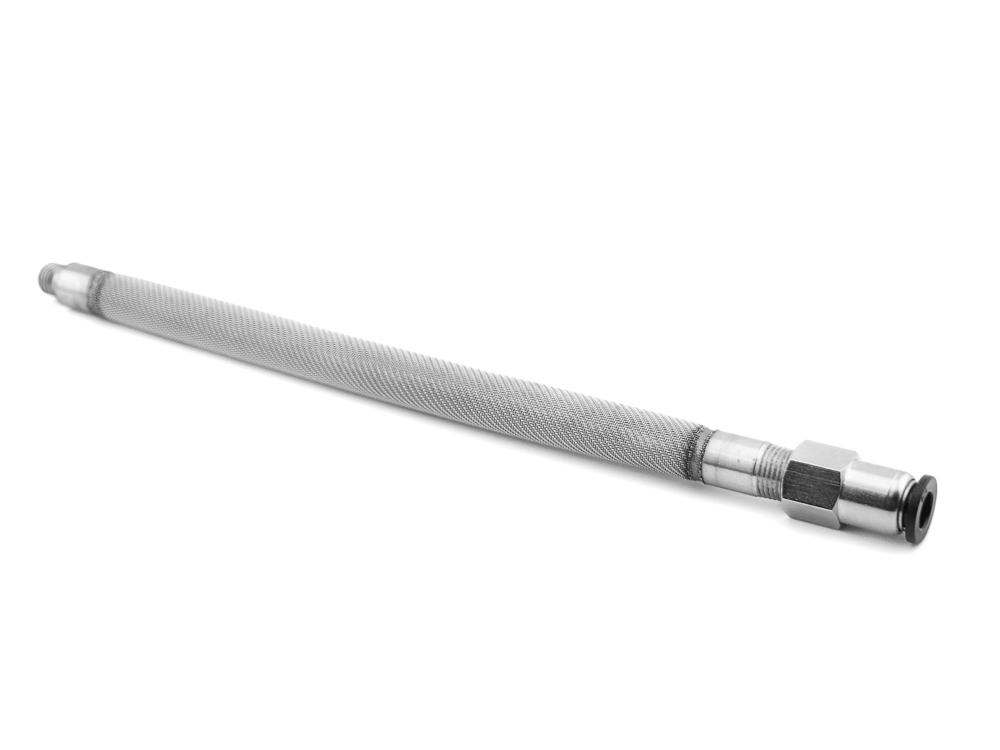

Picture of 6" Stainless Steel Implant 1/4" Speed-Fit Fitting
Picture of 6" Stainless Steel Implant 1/4" Speed-Fit Fitting Picture of 6" Stainless Steel Implant 1/4" Speed-Fit Fitting Picture of 6" Stainless Steel Implant 1/4" Speed-Fit Fitting

6" Stainless Steel Implant 1/4" Speed-Fit Fitting

Use with 1/4" OD Tubing
(Price Based on Qty 100)
Manufacturer: ESP
SKU: SVPT96-6SF14
$32.95
PRICE BREAKS - The more you buy, the more you save
Quantity 25+ 50+ 100+
Price $31.30 $29.66 $26.36
Generate Spec Sheet

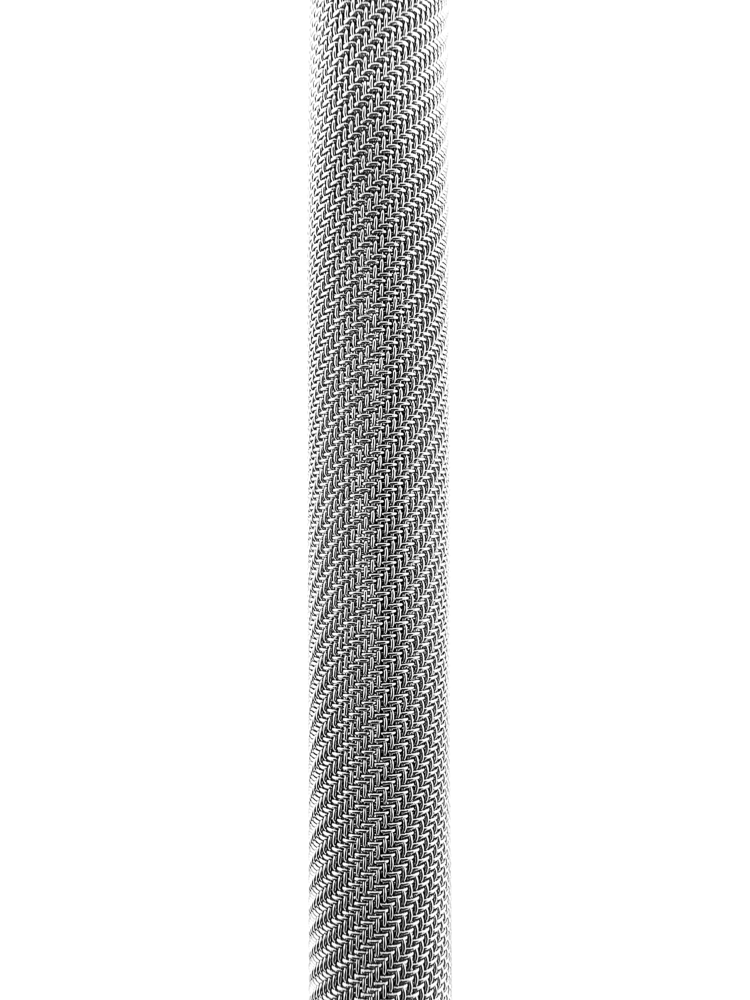

ESP's SS Mesh Implants are constructed of a double woven stainless steel wire screen. With the "Speed-Fit" Fitting, the implant will accept tubing sizes of .25" OD. The solid threaded end allows for either an Anchor Point Anchor Weight or open-hole placement.

Specifications:

Material: 316 Stainless Steel
Filtration Rating: 150 Microns
Max OD: 7/16"
Overall Length: 8-3/8"
Screen Length: 6"

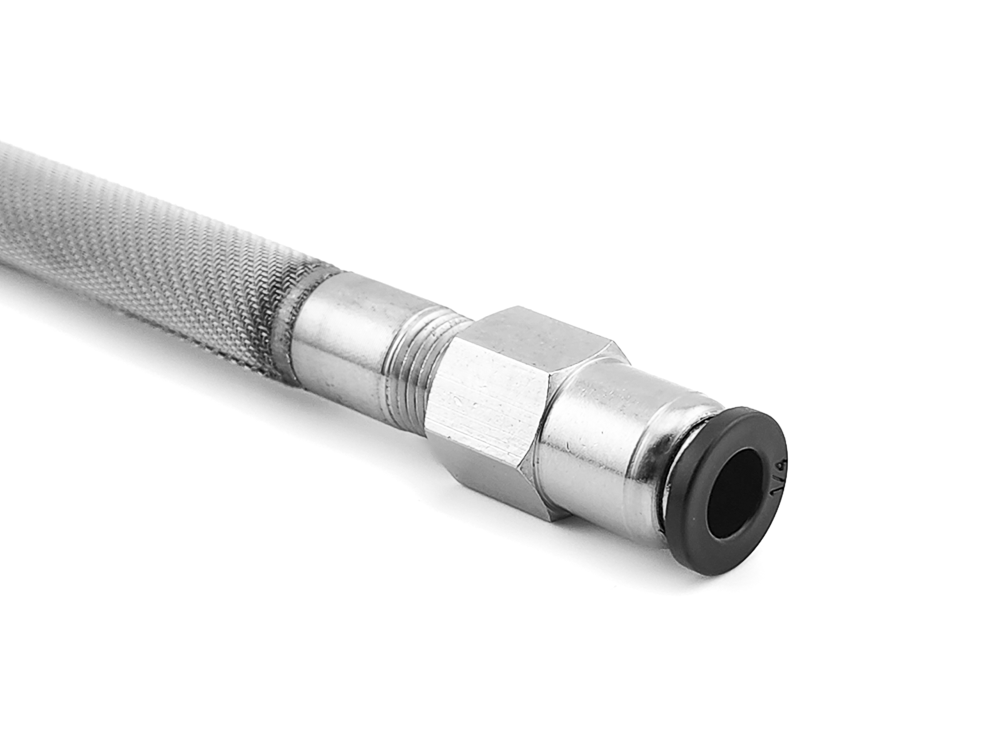

Connection: "Speed Fit" Push-in for 1/4" O.D. Tubing
Anchor Mount: 5/16-24 LHT
Maximum Temp: 400°F

Applications:

  • Vapor Intrusion Sampling
  • Permanent Soil Gas Monitoring
  • Air Sparging
  • Pressure Measurement Point in Vacuum Testing
  • UST Monitoring















Description



ESP's SS Mesh Implants are constructed of a double woven stainless steel wire screen. With the "Speed-Fit" Fitting, the implant will accept tubing sizes of .25" OD. The solid threaded end allows for either an Anchor Point Anchor Weight or open-hole placement.

Specifications:

Material: 316 Stainless Steel
Filtration Rating: 150 Microns
Max OD: 7/16"
Overall Length: 8-3/8"
Screen Length: 6"
Connection: "Speed Fit" Push-in for 1/4" O.D. Tubing
Anchor Mount: 5/16-24 LHT
Maximum Temp: 400°F

Applications:

  • Vapor Intrusion Sampling
  • Permanent Soil Gas Monitoring
  • Air Sparging
  • Pressure Measurement Point in Vacuum Testing
  • UST Monitoring
