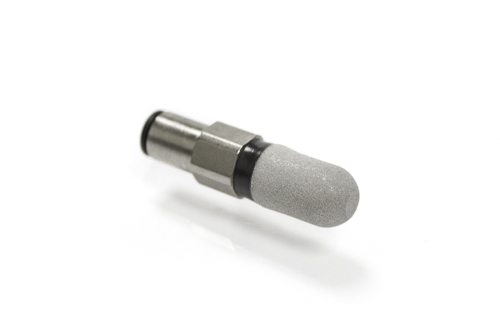

Picture of Polyethylene Implant 1/4" Speed-Fit Fitting

Polyethylene Implant 1/4" Speed-Fit Fitting

Use with 1/4" OD Tubing
(Price Based on Qty 100)
Manufacturer: ESP
SKU: SVPT91-SF14
$8.95
PRICE BREAKS - The more you buy, the more you save
Quantity 25+ 50+ 100+
Price $8.50 $8.06 $7.16
Generate Spec Sheet
ESP's Polyethylene Soil Vapor Implant is an economical way to install semi-permanent soil vapor monitoring wells. The Polyethylene Implant is a one-piece molded assembly made of high-density Porous Polyethylene. The nickel-plated tubing adapter offers a quick and secure connection to flexible tubing.

For questions about this product or others, please call us at 888-511-4377

Specifications:

Material: High-Density Polyethylene
Filtration Rating: 40-60 Microns
Dimensions: 1/2" O.D. x 1-7/8" Length
Connection: 1/4" O.D. Tubing "Speedfit" push-in fitting with a nickel-plated finish.
Maximum Temperature: 150°F

Applications:

  • Vapor Intrusion Sampling
  • Permanent Soil Gas Monitoring
  • Air Sparging
  • Pressure Measurement Point in Vacuum Testing
  • UST Monitoring













Description
ESP's Polyethylene Soil Vapor Implant is an economical way to install semi-permanent soil vapor monitoring wells. The Polyethylene Implant is a one-piece molded assembly made of high-density Porous Polyethylene. The nickel-plated tubing adapter offers a quick and secure connection to flexible tubing.

For questions about this product or others, please call us at 888-511-4377

Specifications:

Material: High-Density Polyethylene
Filtration Rating: 40-60 Microns
Dimensions: 1/2" O.D. x 1-7/8" Length
Connection: 1/4" O.D. Tubing "Speedfit" push-in fitting with a nickel-plated finish.
Maximum Temperature: 150°F

Applications:

  • Vapor Intrusion Sampling
  • Permanent Soil Gas Monitoring
  • Air Sparging
  • Pressure Measurement Point in Vacuum Testing
  • UST Monitoring
