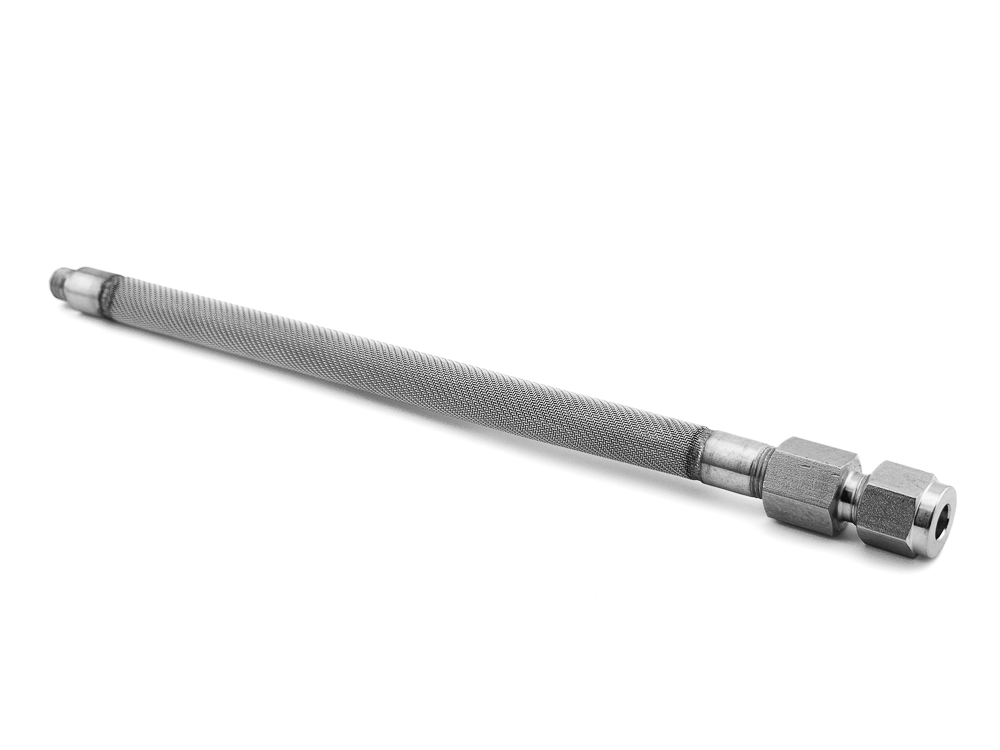

Picture of 6" Stainless Steel Implant 1/4" Compression Fitting
Picture of 6" Stainless Steel Implant 1/4" Compression Fitting Picture of 6" Stainless Steel Implant 1/4" Compression Fitting Picture of 6" Stainless Steel Implant 1/4" Compression Fitting

6" Stainless Steel Implant 1/4" Compression Fitting

Use with 1/4" OD Tubing
(Price Based on Qty 100)
Manufacturer: ESP
SKU: SVPT96-6SW14
$37.95
PRICE BREAKS - The more you buy, the more you save
Quantity 25+ 50+ 100+
Price $36.05 $34.16 $30.36
Generate Spec Sheet

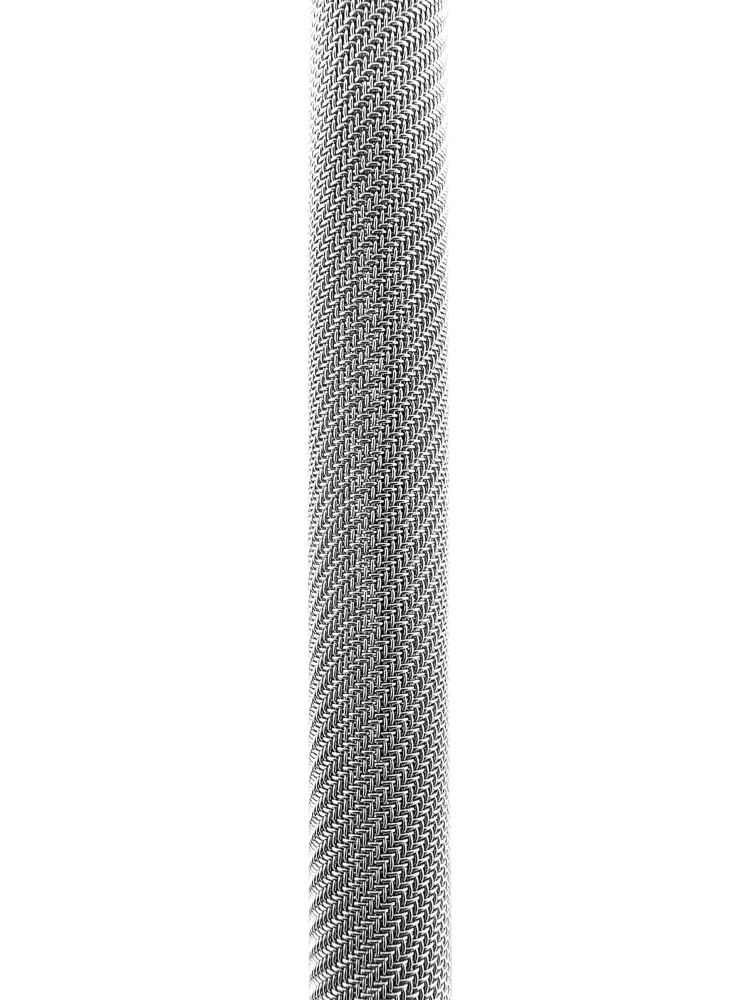

ESP's SS Mesh Implants are constructed of a double-woven stainless steel wire screen. With the Stainless Steel Swagelok Compatible Fitting, the implant will accept 1/4" OD tubing sizes. The solid threaded end allows for either an Anchor Point, Anchor Weight, or open-hole placement.

Specifications:

Material: 316 Stainless Steel
Filtration Rating: 150 Microns
Max OD: 7/16"
Overall Length: 8-3/4"
Screen Length: 6"

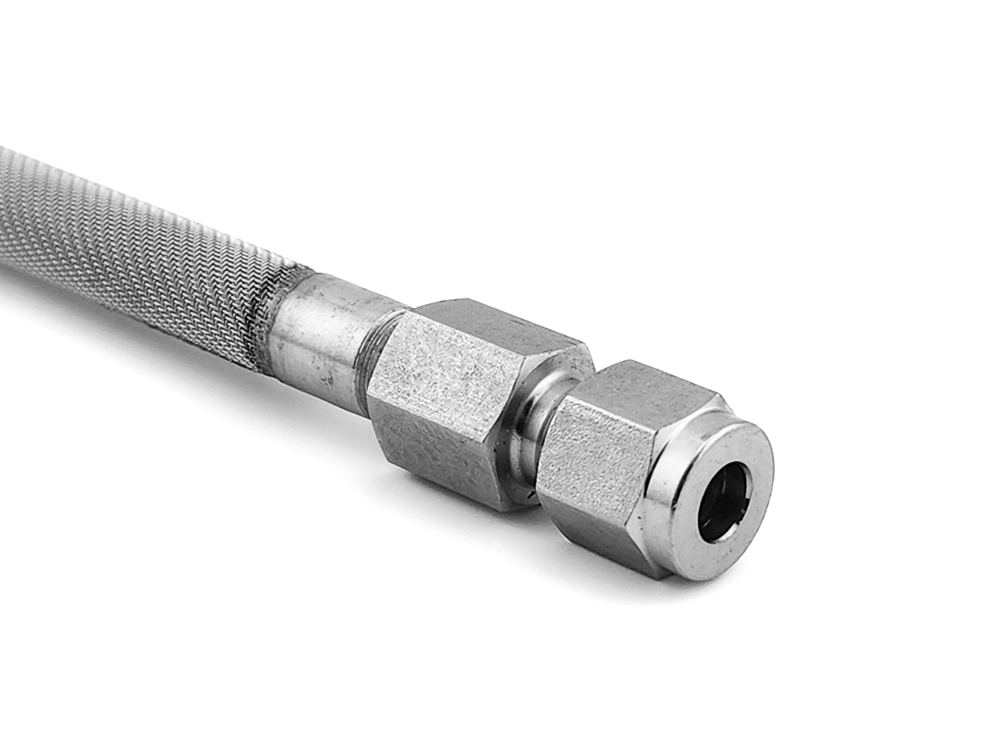

Connection: Swagelok Compatible for 1/4" O.D. Tubing
Anchor Mount: 5/16-24 LHT
Maximum Temp: 400°F

Applications:

  • Vapor Intrusion Sampling
  • Permanent Soil Gas Monitoring
  • Air Sparging
  • Pressure Measurement Point in Vacuum Testing
  • UST Monitoring















Description



ESP's SS Mesh Implants are constructed of a double-woven stainless steel wire screen. With the Stainless Steel Swagelok Compatible Fitting, the implant will accept 1/4" OD tubing sizes. The solid threaded end allows for either an Anchor Point, Anchor Weight, or open-hole placement.

Specifications:

Material: 316 Stainless Steel
Filtration Rating: 150 Microns
Max OD: 7/16"
Overall Length: 8-3/4"
Screen Length: 6"
Connection: Swagelok Compatible for 1/4" O.D. Tubing
Anchor Mount: 5/16-24 LHT
Maximum Temp: 400°F

Applications:

  • Vapor Intrusion Sampling
  • Permanent Soil Gas Monitoring
  • Air Sparging
  • Pressure Measurement Point in Vacuum Testing
  • UST Monitoring
