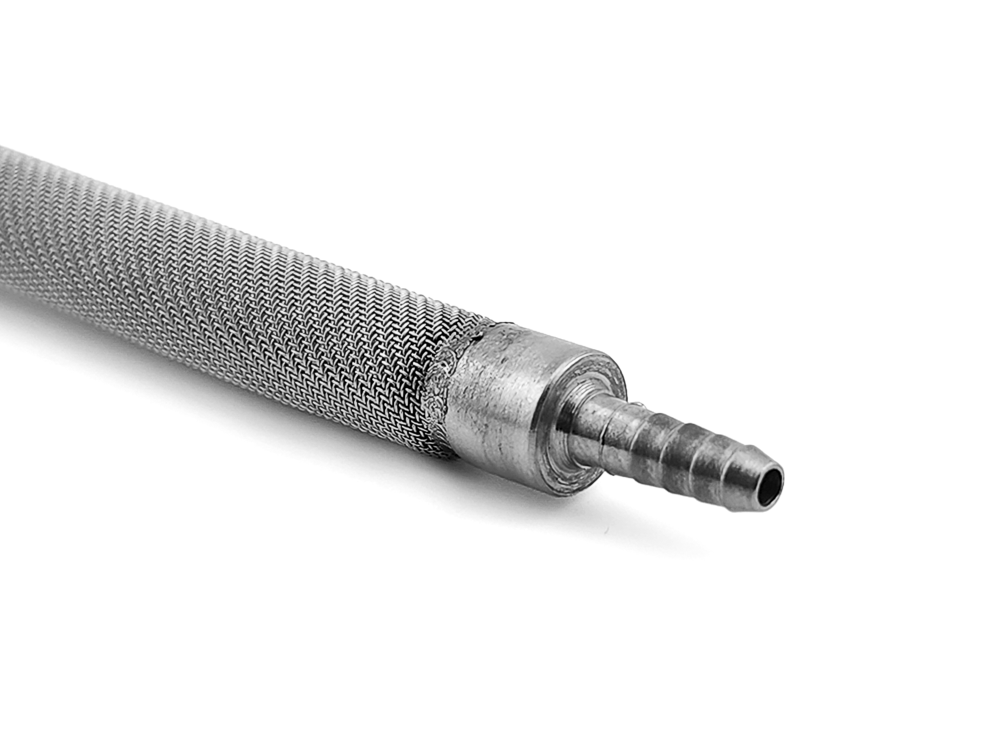

Picture of 3" Stainless Steel Implant Barb Fitting
Picture of 3" Stainless Steel Implant Barb Fitting Picture of 3" Stainless Steel Implant Barb Fitting

3" Stainless Steel Implant Barb Fitting

Use with 1/4" OD Tubing
(Price Based on Qty 100)
Manufacturer: ESP
SKU: SVPT96-3PR
$32.95
PRICE BREAKS - The more you buy, the more you save
Quantity 25+ 50+ 100+
Price $31.30 $29.66 $26.36
Generate Spec Sheet

These implants are constructed of double woven stainless steel wire screen. With the universal "Barb" fitting, the implant will accept tubing sizes of .25" OD. The solid end allows for either an anchor point or open-hole placement.



ESP's SS Mesh Implants are constructed of a double woven stainless steel wire screen. With the universal "Barb" fitting, the implant will accept tubing sizes of .25" OD. The solid threaded end allows for either an Anchor Point Anchor Weight or open-hole placement.

Specifications:

Material: 316 Stainless Steel
Filtration Rating: 150 Microns
Max OD: 7/16"
Overall Length: 4-7/8"
Screen Length: 3"
Connection: .17"-.19" I.D. Tube Barb for 1/4" O.D. Tubing
Anchor Mount: 5/16-24 LHT
Maximum Temp: 400°F

Applications:

  • Vapor Intrusion Sampling
  • Permanent Soil Gas Monitoring
  • Air Sparging
  • Pressure Measurement Point in Vacuum Testing
  • UST Monitoring















Description

These implants are constructed of double woven stainless steel wire screen. With the universal "Barb" fitting, the implant will accept tubing sizes of .25" OD. The solid end allows for either an anchor point or open-hole placement.



ESP's SS Mesh Implants are constructed of a double woven stainless steel wire screen. With the universal "Barb" fitting, the implant will accept tubing sizes of .25" OD. The solid threaded end allows for either an Anchor Point Anchor Weight or open-hole placement.

Specifications:

Material: 316 Stainless Steel
Filtration Rating: 150 Microns
Max OD: 7/16"
Overall Length: 4-7/8"
Screen Length: 3"
Connection: .17"-.19" I.D. Tube Barb for 1/4" O.D. Tubing
Anchor Mount: 5/16-24 LHT
Maximum Temp: 400°F

Applications:

  • Vapor Intrusion Sampling
  • Permanent Soil Gas Monitoring
  • Air Sparging
  • Pressure Measurement Point in Vacuum Testing
  • UST Monitoring
