Picture of 6" Stainless Steel Implant 3/8" Speed-Fit Fitting

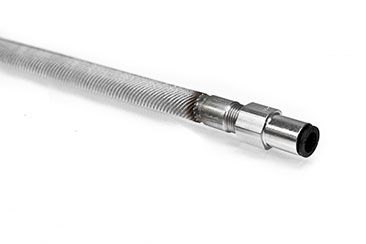

6" Stainless Steel Implant 3/8" Speed-Fit Fitting

Use with 3/8" OD Tubing
Manufacturer: ESP
SKU: SVPT96-6SF38
$40.95
Generate Spec Sheet

ESP's SS Mesh Implants are constructed of a double woven stainless steel wire screen. With the "Speed-Fit" Fitting, the implant will accept tubing sizes of 3/8" OD. The solid threaded end allows for either an Anchor Point Anchor Weight or open-hole placement.

Specifications:

Material: 316 Stainless Steel
Filtration Rating: 150 Microns
Max OD: 0.73"
Overall Length: 9"
Screen Length: 6"
Connection: "Speed Fit" Push-in for 3/8" O.D. Tubing
Anchor Mount: 5/16-24 LHT
Maximum Temp: 400°F

Applications:

  • Vapor Intrusion Sampling
  • Permanent Soil Gas Monitoring
  • Air Sparging
  • Pressure Measurement Point in Vacuum Testing
  • UST Monitoring















Description

ESP's SS Mesh Implants are constructed of a double woven stainless steel wire screen. With the "Speed-Fit" Fitting, the implant will accept tubing sizes of 3/8" OD. The solid threaded end allows for either an Anchor Point Anchor Weight or open-hole placement.

Specifications:

Material: 316 Stainless Steel
Filtration Rating: 150 Microns
Max OD: 0.73"
Overall Length: 9"
Screen Length: 6"
Connection: "Speed Fit" Push-in for 3/8" O.D. Tubing
Anchor Mount: 5/16-24 LHT
Maximum Temp: 400°F

Applications:

  • Vapor Intrusion Sampling
  • Permanent Soil Gas Monitoring
  • Air Sparging
  • Pressure Measurement Point in Vacuum Testing
  • UST Monitoring
