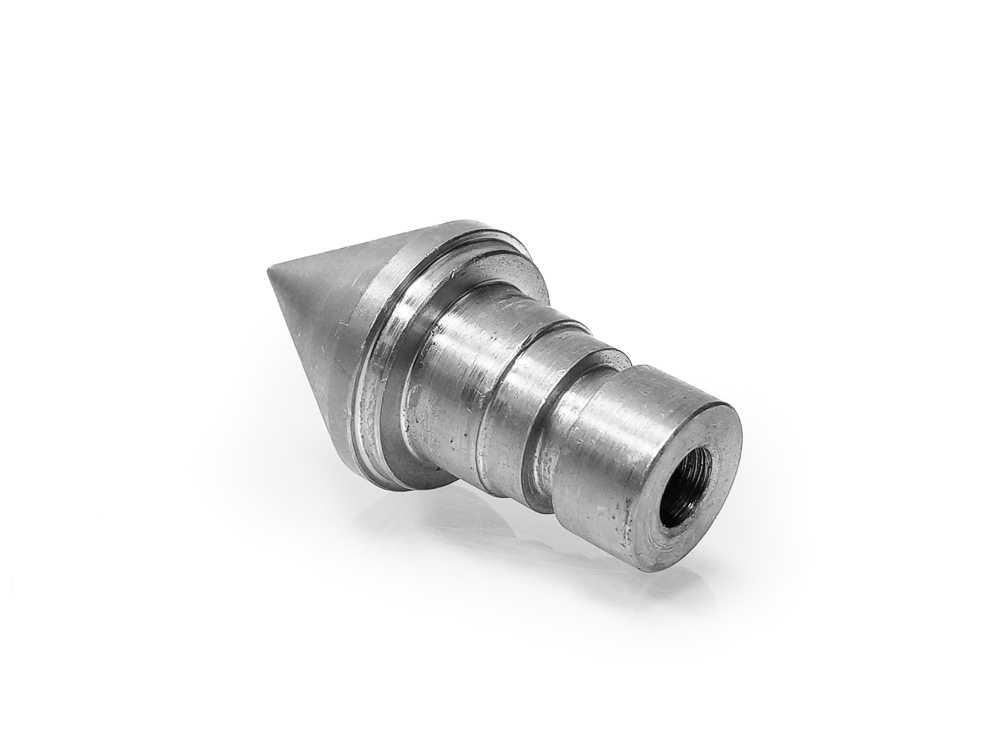

Picture of Stainless Steel Anchor Point

Stainless Steel Anchor Point

For  3", 6", 12", 21" SS Implants
Manufacturer: ESP
SKU: SVPT97
$10.95
Generate Spec Sheet
The original anchor point is the traditional method for adding weight and stability to your implant probe. By adding this anchor to the bottom of your implant you are able to drop it into loose soil at the bottom of your well and lock it into place. The added weight of the point helps the implant deploy and stay in position. The point model also allows it to be used with select Direct Push probe rods to be deployed through the ID of the rod.

For questions about this product or others, please call us at 888-511-4377

Specifications:

Material: Steel
OD: 1.10"
Length: 2.16"
Weight: 3.6 oz.
Thread: 5/16 - 24 Left-hand thread

Applications:

For use with all Mesh style implants with reverse thread tip. This Optional Anchor Point can be used with 3", 6", 12" and 21" Stainless Steel Implants. By adding this anchor point to the end of your implant, you are able to secure it into the loose soil at the bottom of the well. The point design matches a standard expendable point, making deployment through direct push probe rods of 1.25" or 1.5" OD possible. When used with the appropriate expendable point holder, this point along with the implant and tube line can be fed through the ID of your rod on deep wells.



Vapor Weight







Description
The original anchor point is the traditional method for adding weight and stability to your implant probe. By adding this anchor to the bottom of your implant you are able to drop it into loose soil at the bottom of your well and lock it into place. The added weight of the point helps the implant deploy and stay in position. The point model also allows it to be used with select Direct Push probe rods to be deployed through the ID of the rod.

For questions about this product or others, please call us at 888-511-4377

Specifications:

Material: Steel
OD: 1.10"
Length: 2.16"
Weight: 3.6 oz.
Thread: 5/16 - 24 Left-hand thread

Applications:

For use with all Mesh style implants with reverse thread tip. This Optional Anchor Point can be used with 3", 6", 12" and 21" Stainless Steel Implants. By adding this anchor point to the end of your implant, you are able to secure it into the loose soil at the bottom of the well. The point design matches a standard expendable point, making deployment through direct push probe rods of 1.25" or 1.5" OD possible. When used with the appropriate expendable point holder, this point along with the implant and tube line can be fed through the ID of your rod on deep wells.



Vapor Weight
