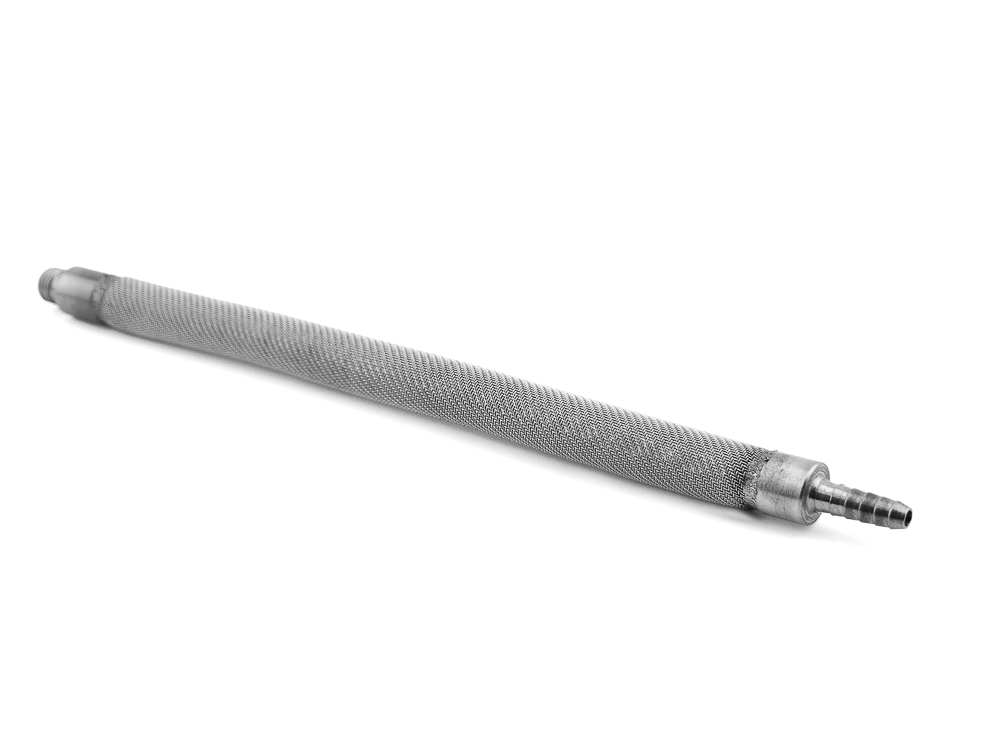

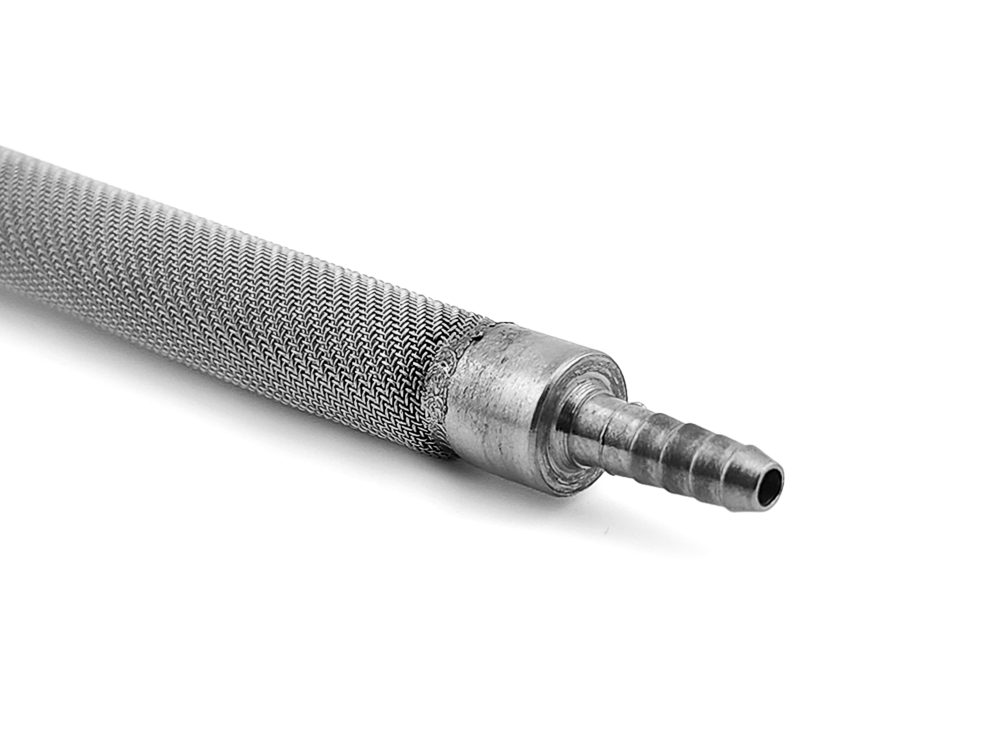

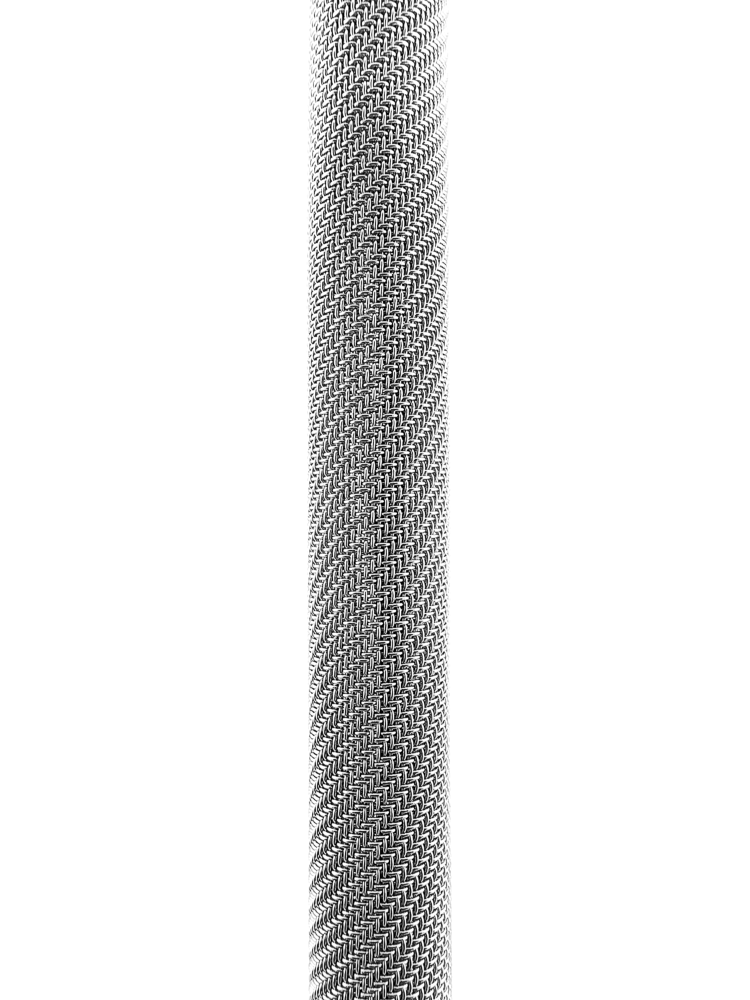

Picture of 6" Stainless Steel Implant Barb Fitting - copy
Picture of 6" Stainless Steel Implant Barb Fitting - copy Picture of 6" Stainless Steel Implant Barb Fitting - copy Picture of 6" Stainless Steel Implant Barb Fitting - copy

6" Stainless Steel Implant Barb Fitting - copy

Use with 1/4" OD Tubing
Manufacturer: ESP
SKU: SVPT96-6PR-copy
$30.95
Generate Spec Sheet



ESP's SS Mesh Implants are constructed of a double woven stainless steel wire screen. With the universal "Barb" fitting, the implant will accept tubing sizes of .25" OD. The solid threaded end allows for either an Anchor Point Anchor Weight or open-hole placement.

Specifications:

Material: 316 Stainless Steel
Filtration Rating: 150 Microns
Max OD: 7/16"
Overall Length: 8"
Screen Length: 6"
Connection: .17"-.19" I.D. Tube Barb for 1/4" O.D. Tubing
Anchor Mount: 5/16-24 LHT
Maximum Temp: 400°F

Applications:

  • Vapor Intrusion Sampling
  • Permanent Soil Gas Monitoring
  • Air Sparging
  • Pressure Measurement Point in Vacuum Testing
  • UST Monitoring















Description



ESP's SS Mesh Implants are constructed of a double woven stainless steel wire screen. With the universal "Barb" fitting, the implant will accept tubing sizes of .25" OD. The solid threaded end allows for either an Anchor Point Anchor Weight or open-hole placement.

Specifications:

Material: 316 Stainless Steel
Filtration Rating: 150 Microns
Max OD: 7/16"
Overall Length: 8"
Screen Length: 6"
Connection: .17"-.19" I.D. Tube Barb for 1/4" O.D. Tubing
Anchor Mount: 5/16-24 LHT
Maximum Temp: 400°F

Applications:

  • Vapor Intrusion Sampling
  • Permanent Soil Gas Monitoring
  • Air Sparging
  • Pressure Measurement Point in Vacuum Testing
  • UST Monitoring
