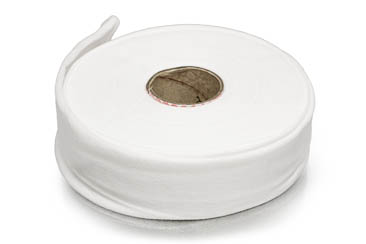

Picture of 8"-12" Filter Sock, 100' Roll
Picture of 8"-12" Filter Sock, 100' Roll Picture of 8"-12" Filter Sock, 100' Roll

8"-12" Filter Sock, 100' Roll

105 Micron, 100% Polyester
Manufacturer: ESP
SKU: W-800FS
$148.95
Generate Spec Sheet

Our filter fabrics have been specially designed for use in the environmental industry to prevent the infiltration of soil particles into groundwater monitoring wells in order to prolong their service life.

The Filter sock or Filter Sleeve is easily installed onto a slotted well screen or other perforated pipes. The elastic polyester material allows it to stretch over the outside of the pipe but maintain a snug fit after it is positioned. There are no seams to glue or weld due to its durable tubular knit construction. Designed to fit easily over 8" pipe, this filter can be stretched to fit over 12" and even 14" diameter pipe, although you will lose filterability due to the knitting being expanded. It will also be harder to get over longer lengths.

Made of 100% polyester fiber, our Aqua-Sleeve is inert to a broad range of chemicals and is therefore ideally suited for use in petroleum gas stations, bulk fuel depots, landfill sites or anywhere the possibility of groundwater contamination may occur or site remediation has been undertaken and long-term monitoring of the site is required.

Specifications:

Material: Polyester
Filtration Rating: 105 Microns
Relaxed Fabric Thickness: 0.35"
Relaxed ID: 8.5"
Max ID: 16"
Max Temp: 140°F
Min Temp: -60°F

Applications:

  • Added Water Well Filtration
  • Silt and Sediment Barrier in Pond and Lake Filtration
  • Drainage Filter Sleeve













Description

Our filter fabrics have been specially designed for use in the environmental industry to prevent the infiltration of soil particles into groundwater monitoring wells in order to prolong their service life.

The Filter sock or Filter Sleeve is easily installed onto a slotted well screen or other perforated pipes. The elastic polyester material allows it to stretch over the outside of the pipe but maintain a snug fit after it is positioned. There are no seams to glue or weld due to its durable tubular knit construction. Designed to fit easily over 8" pipe, this filter can be stretched to fit over 12" and even 14" diameter pipe, although you will lose filterability due to the knitting being expanded. It will also be harder to get over longer lengths.

Made of 100% polyester fiber, our Aqua-Sleeve is inert to a broad range of chemicals and is therefore ideally suited for use in petroleum gas stations, bulk fuel depots, landfill sites or anywhere the possibility of groundwater contamination may occur or site remediation has been undertaken and long-term monitoring of the site is required.

Specifications:

Material: Polyester
Filtration Rating: 105 Microns
Relaxed Fabric Thickness: 0.35"
Relaxed ID: 8.5"
Max ID: 16"
Max Temp: 140°F
Min Temp: -60°F

Applications:

  • Added Water Well Filtration
  • Silt and Sediment Barrier in Pond and Lake Filtration
  • Drainage Filter Sleeve
