5" Bell Pipe Elevators, Set of 2

For 5.0" ID x 5.5" OD Pipe
Manufacturer: J&K
SKU: W-500ELV
$254.95
Generate Spec Sheet

Sold in sets of 2

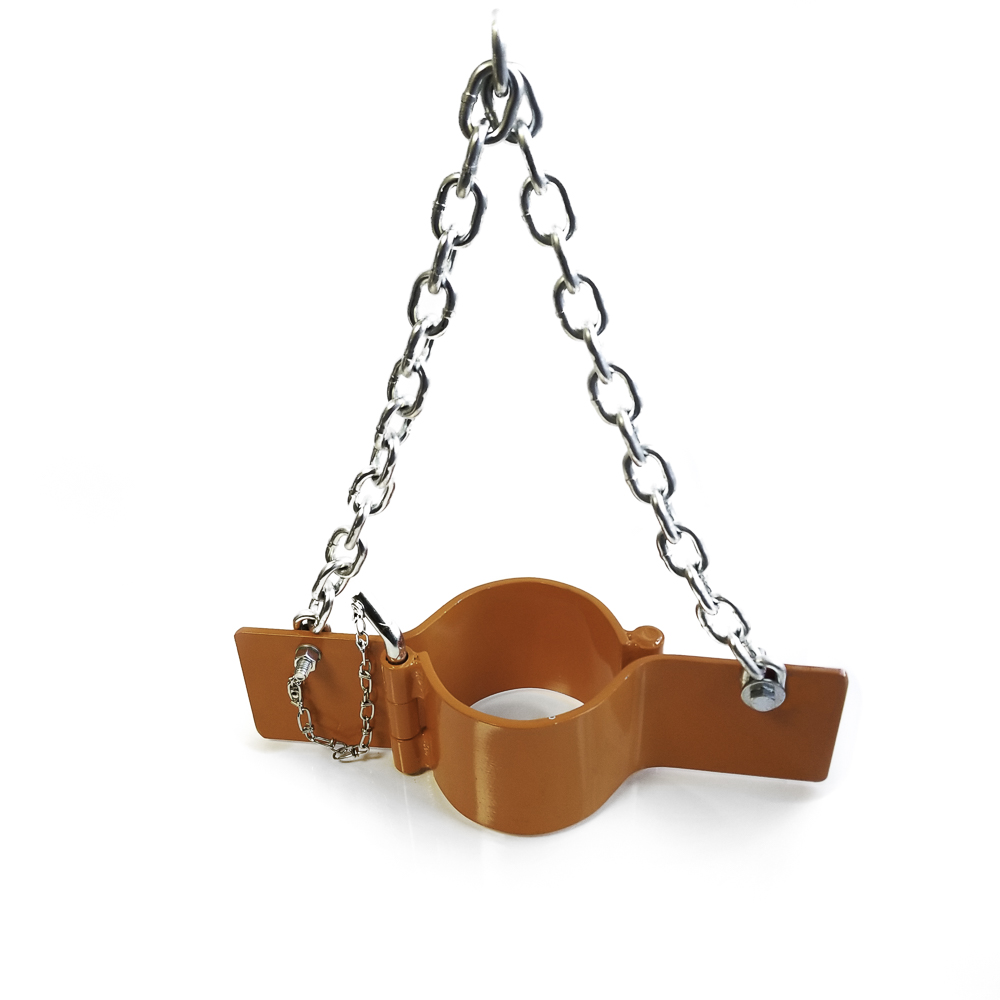

Our PVC Elevators are the most time-efficient and safest way to maneuver your PVC Bell End Pipe for Vertical installation or retrieval. Fitted with a zinc-plated, Grade 43 chain connected to 1/4" Form Welded Steel, these elevators are designed to last.

Installation

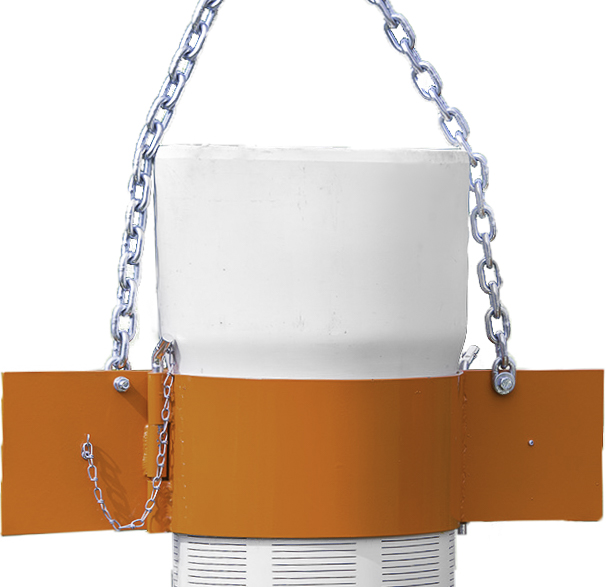

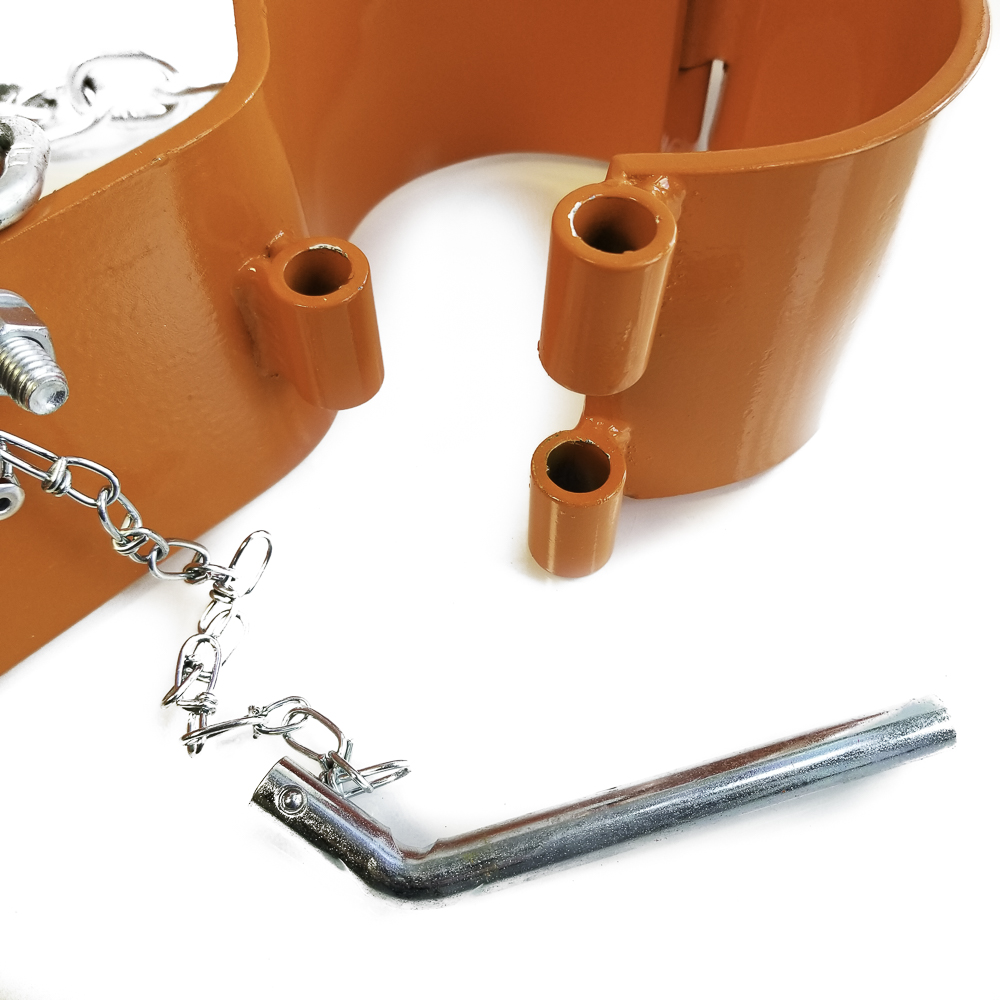

Each elevator has two sides that swing open by a hinge. Once the elevator is positioned around the pipe and the hinge is closed, a pin holds the two pieces together. The elevator can be lifted by a boom or crane to the shoulder of the bell pipe, where it will hold in place until the pin is removed.

Specifications

Pipe Size:5"
Schedule: 40 or 80
Material: Steel
Max Load: 2000lbs

Description

Sold in sets of 2


Our PVC Elevators are the most time-efficient and safest way to maneuver your PVC Bell End Pipe for Vertical installation or retrieval. Fitted with a zinc-plated, Grade 43 chain connected to 1/4" Form Welded Steel, these elevators are designed to last.

Installation

Each elevator has two sides that swing open by a hinge. Once the elevator is positioned around the pipe and the hinge is closed, a pin holds the two pieces together. The elevator can be lifted by a boom or crane to the shoulder of the bell pipe, where it will hold in place until the pin is removed.

Specifications

Pipe Size:5"
Schedule: 40 or 80
Material: Steel
Max Load: 2000lbs
