Picture of 3" PVC Bell Pipe Elevators.. (Set of 2)
Picture of 3" PVC Bell Pipe Elevators.. (Set of 2) Picture of 3" PVC Bell Pipe Elevators.. (Set of 2) Picture of 3" PVC Bell Pipe Elevators.. (Set of 2)

3" PVC Bell Pipe Elevators.. (Set of 2)

For 3.0" ID x 3.5" OD Pipe
Manufacturer: J&K
SKU: W-300ELV
$234.95
Generate Spec Sheet

Sold in sets of 2

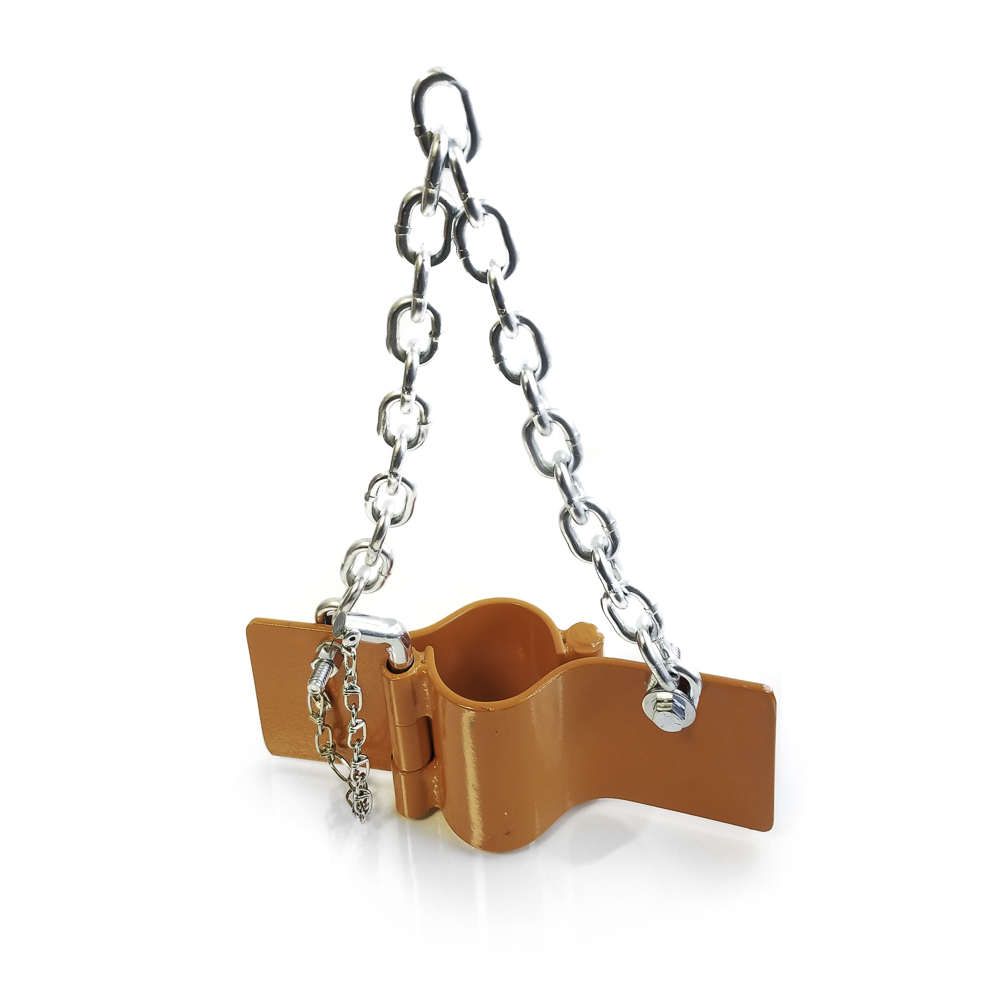

Our PVC Elevators are the most time-efficient and safest way to maneuver your PVC Bell End Pipe for Vertical installation or retrieval. Fitted with a zinc-plated, Grade 43 chain connected to 1/4" Form Welded Steel, these elevators are designed to last.

Installation

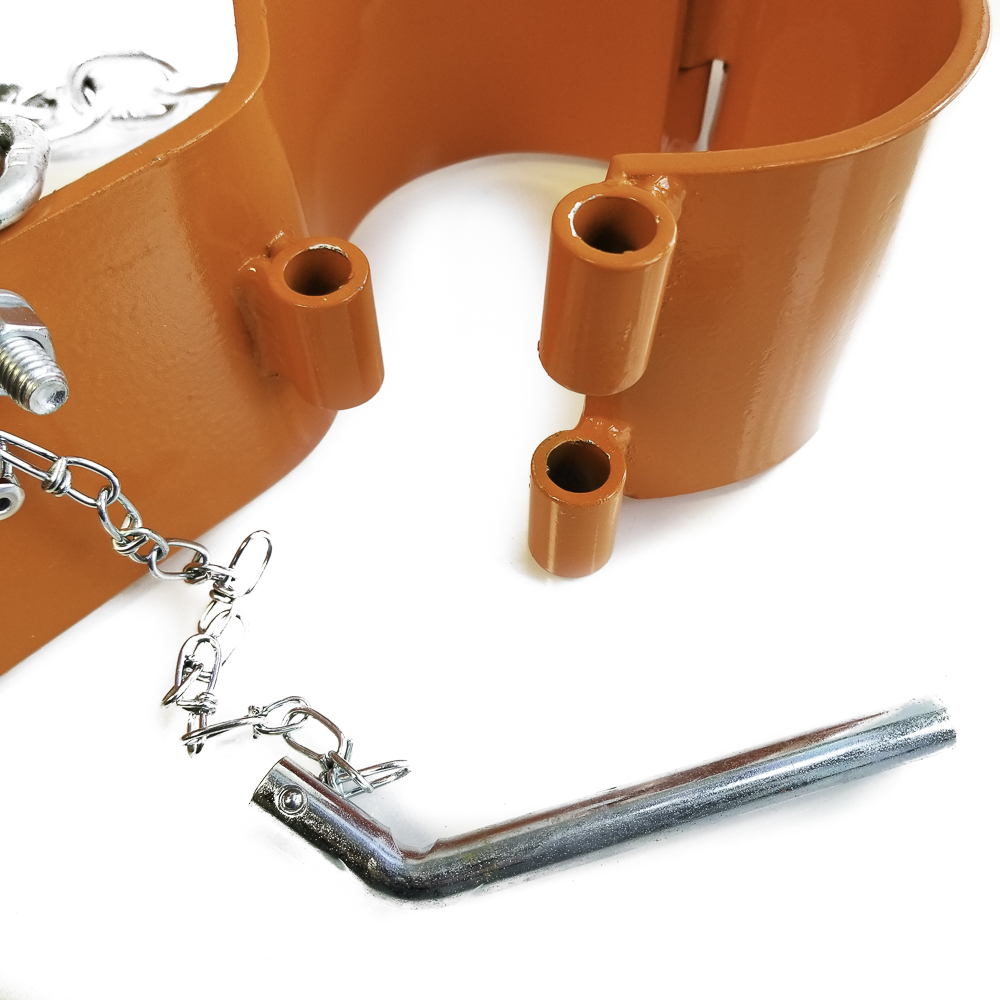

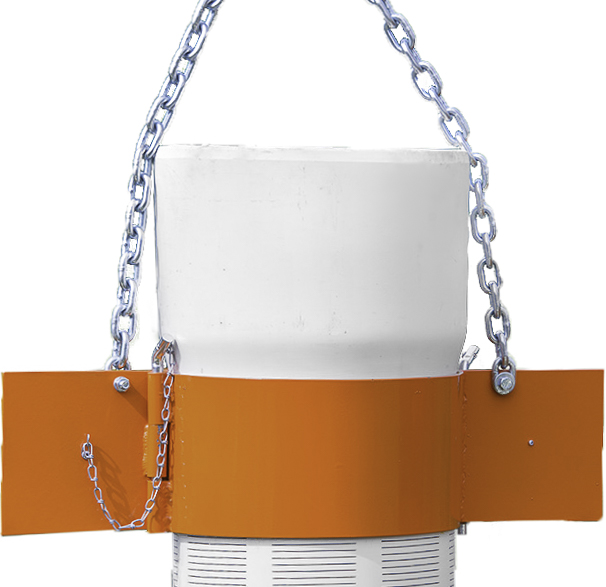

Each elevator has two sides that swing open by a hinge. Once the elevator is positioned around the pipe and the hinge is closed, a pin holds the two pieces together. The elevator can be lifted by a boom or crane to the shoulder of the bell pipe, where it will hold in place until the pin is removed.

Specifications

Pipe Size:3"
Schedule: 40 or 80
Material: Steel
Max Load: 2000lbs

Description

Sold in sets of 2


Our PVC Elevators are the most time-efficient and safest way to maneuver your PVC Bell End Pipe for Vertical installation or retrieval. Fitted with a zinc-plated, Grade 43 chain connected to 1/4" Form Welded Steel, these elevators are designed to last.

Installation

Each elevator has two sides that swing open by a hinge. Once the elevator is positioned around the pipe and the hinge is closed, a pin holds the two pieces together. The elevator can be lifted by a boom or crane to the shoulder of the bell pipe, where it will hold in place until the pin is removed.

Specifications

Pipe Size:3"
Schedule: 40 or 80
Material: Steel
Max Load: 2000lbs
