Picture of 3/8" ID x 1/2" OD Teflon Lined LDPE Poly Tubing

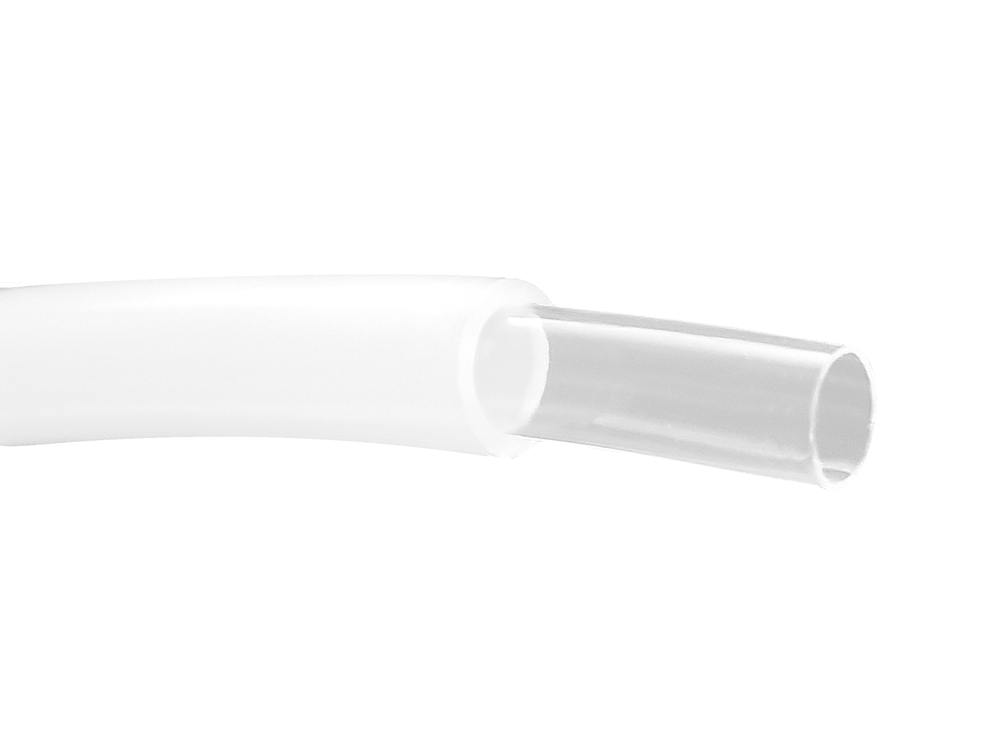

3/8" ID x 1/2" OD Teflon Lined LDPE Poly Tubing

Available in 100', 500' Lengths
(Price Based on 500' Length)
Manufacturer: ESP
Availability: Please select required attribute(s)
SKU: TLP500
*
$1.75
Generate Spec Sheet

Note: The advertised Price Per Foot Is Based On a 500' Spool



Teflon-lined LDPE poly tubing is an acceptable solution for soil vapor gas intrusion sampling. Teflon-lined LDPE poly offers a cost-effective substitute for pure FEP Teflon in larger diameters. Teflon-lined LDPE poly is approved by the DTSC for most soil gas sampling. Other common uses include but are not limited to; riser, lift or lead tubing for groundwater pumps, well developers, and foot valves where harsh VOCs are occurring.

For questions about bulk orders, please call us at 888-511-4377

Specifications:

Tubing Material: Teflon Lined LDPE
Tubing Type: FEP Inner Lining / LDPE Jacket
Tubing Color: Natural
Inside Diameter: .375" or 3/8"
Outside Diameter: .5" or 1/2"
Wall Thickness: .012"
Length: Various
Max Pressure: 50 PSI at 70°F
Operating Temp. Range: -25°F to 180°F

Applications:

  • Groundwater monitoring
  • Air sampling tubes
  • Laboratory applications
  • Water processing

FEP Teflon Lined Tubing Features:

  • FEP tubing jacketed with LDPE
  • FEP liner maintains the purity of the sample
  • Low permeability
  • Moisture absorption is nearly zero
  • PFOA Free













Description

Note: The advertised Price Per Foot Is Based On a 500' Spool



Teflon-lined LDPE poly tubing is an acceptable solution for soil vapor gas intrusion sampling. Teflon-lined LDPE poly offers a cost-effective substitute for pure FEP Teflon in larger diameters. Teflon-lined LDPE poly is approved by the DTSC for most soil gas sampling. Other common uses include but are not limited to; riser, lift or lead tubing for groundwater pumps, well developers, and foot valves where harsh VOCs are occurring.

For questions about bulk orders, please call us at 888-511-4377

Specifications:

Tubing Material: Teflon Lined LDPE
Tubing Type: FEP Inner Lining / LDPE Jacket
Tubing Color: Natural
Inside Diameter: .375" or 3/8"
Outside Diameter: .5" or 1/2"
Wall Thickness: .012"
Length: Various
Max Pressure: 50 PSI at 70°F
Operating Temp. Range: -25°F to 180°F

Applications:

  • Groundwater monitoring
  • Air sampling tubes
  • Laboratory applications
  • Water processing

FEP Teflon Lined Tubing Features:

  • FEP tubing jacketed with LDPE
  • FEP liner maintains the purity of the sample
  • Low permeability
  • Moisture absorption is nearly zero
  • PFOA Free
