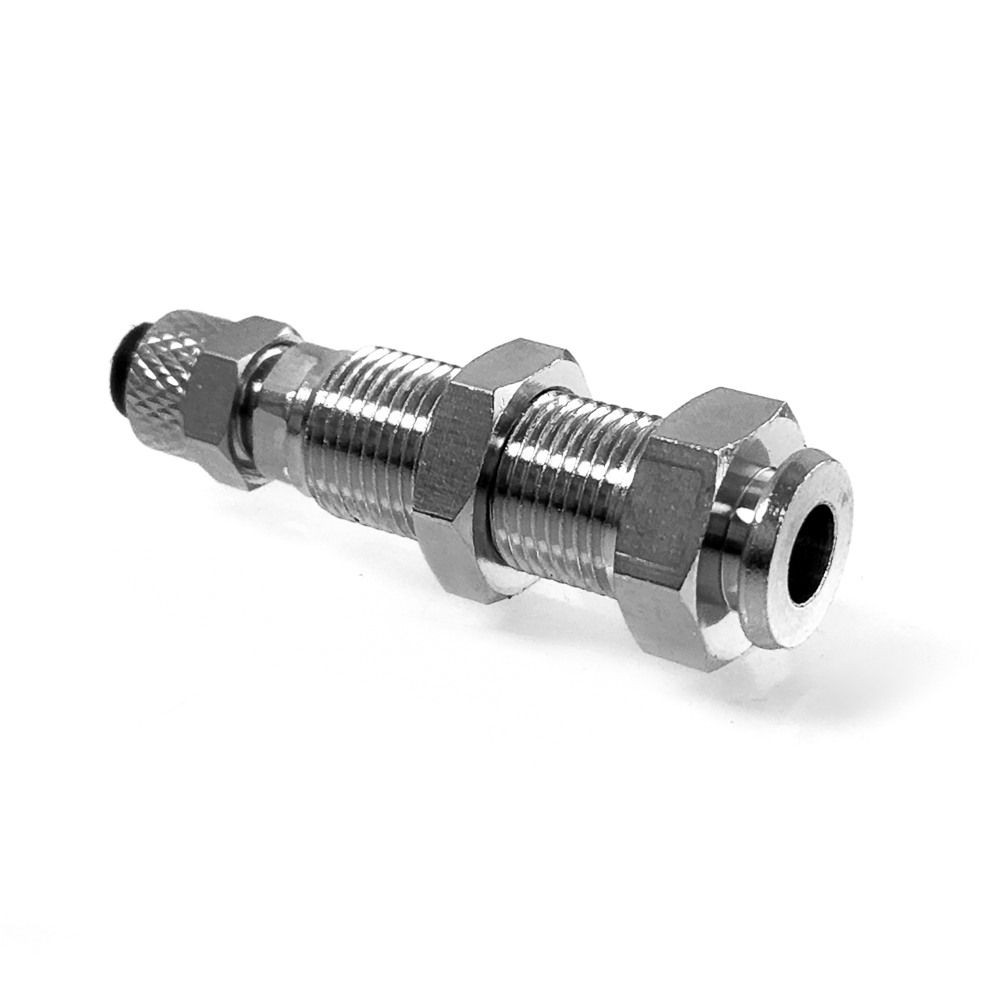

Picture of Vapor Sampling Bulkhead Coupler 1/4"

Vapor Sampling Bulkhead Coupler 1/4"

Use with 1/4" OD Tubing
Manufacturer: ESP
SKU: SVPTSS-BHS
$18.95
Generate Spec Sheet



ESP's Bulkhead Coupler is designed to allow a single location sampling box to be installed in new builds. The Bulkhead can be mounted inside an exterior junction box or access panel to allow technicians to sample without having to gain entry into the building. This probe monitoring technique is widely used on Vapor and Gas Membrane installations.

Specifications:

Material: Plated Brass
PSI: 150
Dimensions: 1/2" O.D. x 1-7/8" Length
Connection: 1/4" O.D. Tubing Ferrule fitting
Maximum Temperature: 150°F

Applications:

  • Vapor Intrusion Sampling
  • Soil Gas Sampling Probe Monitoring
  • Station/Port With Quick Connect Fitting
  • Pressure Measurement Point in Vacuum Testing
  • UST Monitoring















Description



ESP's Bulkhead Coupler is designed to allow a single location sampling box to be installed in new builds. The Bulkhead can be mounted inside an exterior junction box or access panel to allow technicians to sample without having to gain entry into the building. This probe monitoring technique is widely used on Vapor and Gas Membrane installations.

Specifications:

Material: Plated Brass
PSI: 150
Dimensions: 1/2" O.D. x 1-7/8" Length
Connection: 1/4" O.D. Tubing Ferrule fitting
Maximum Temperature: 150°F

Applications:

  • Vapor Intrusion Sampling
  • Soil Gas Sampling Probe Monitoring
  • Station/Port With Quick Connect Fitting
  • Pressure Measurement Point in Vacuum Testing
  • UST Monitoring
