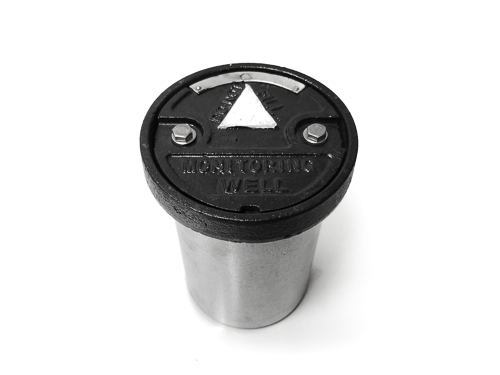

Picture of Manhole, 5" x 7" Steel Skirt

Manhole, 5" x 7" Steel Skirt

5.8" OD 2.75" Clear Hole ID 8.25" Height (H-20 Traffic Rated)
Manufacturer: ESP
SKU: MM5-7M-ESP
$47.95
Generate Spec Sheet

Specifications:

Material: Cast Iron Lid, Steel Skirt
Lid Style: Bolt Down (Two 1/2" Bolts)
Outer Diameter: 5-7/8"
Overall Height: 8-1/4"
Skirt length: 7"
Inner Diameter: 2-3/4" Clear Hole
Skirt: .035" Steel Wall Thickness
Rating: H-20 Traffic Rated, AASHTO H-20

Applications:

  • Ideal for Soil Vapor Monitoring
  • Low profile indoor and outdoor use
  • H-20 Rated for Roadways






5 x 7 Manhole Specs
Description

Specifications:

Material: Cast Iron Lid, Steel Skirt
Lid Style: Bolt Down (Two 1/2" Bolts)
Outer Diameter: 5-7/8"
Overall Height: 8-1/4"
Skirt length: 7"
Inner Diameter: 2-3/4" Clear Hole
Skirt: .035" Steel Wall Thickness
Rating: H-20 Traffic Rated, AASHTO H-20

Applications:

  • Ideal for Soil Vapor Monitoring
  • Low profile indoor and outdoor use
  • H-20 Rated for Roadways






5 x 7 Manhole Specs
