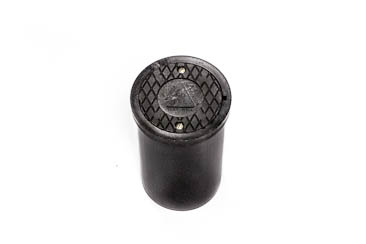

Picture of Manhole, 4" x 8" Plastic

Manhole, 4" x 8" Plastic

5-1/8" OD, 8-3/4" Height (H-20 Traffic Rated)
Manufacturer: Koby
Availability: Out of stock
SKU: MM4-8P
$39.95
Generate Spec Sheet

ESP's 4" x 8" Fiberglass Reinforced Nylon Polymer Manhole is ideal for your Soil Vapor Monitoring project and is manufactured to withstand highway traffic loads. The low profile design makes it ideal for sampling indoors as well.

Specifications:

Material: FRN - Fiberglass Reinforced Nylon Polymer
Lid Style: 2 Stainless Steel Screws w/Brass Insert
Outer Diameter: 5-1/8"
Overall Height: 8-3/4"
Inner Diameter: 2-3/4" Clear Hole
Skirt: .125" HDPE Wall Thickness
Rating: H-20 Traffic rated, AASHTO H-20/HS-20
Wheel Load Capacity: 16,000 lb

Applications:

  • Ideal for Soil Vapor Monitoring
  • Low-profile indoor and outdoor use
  • H-20 Rated for Roadways



SOP and other Resources:

 Cut Sheet













Description

ESP's 4" x 8" Fiberglass Reinforced Nylon Polymer Manhole is ideal for your Soil Vapor Monitoring project and is manufactured to withstand highway traffic loads. The low profile design makes it ideal for sampling indoors as well.

Specifications:

Material: FRN - Fiberglass Reinforced Nylon Polymer
Lid Style: 2 Stainless Steel Screws w/Brass Insert
Outer Diameter: 5-1/8"
Overall Height: 8-3/4"
Inner Diameter: 2-3/4" Clear Hole
Skirt: .125" HDPE Wall Thickness
Rating: H-20 Traffic rated, AASHTO H-20/HS-20
Wheel Load Capacity: 16,000 lb

Applications:

  • Ideal for Soil Vapor Monitoring
  • Low-profile indoor and outdoor use
  • H-20 Rated for Roadways



SOP and other Resources:

 Cut Sheet
