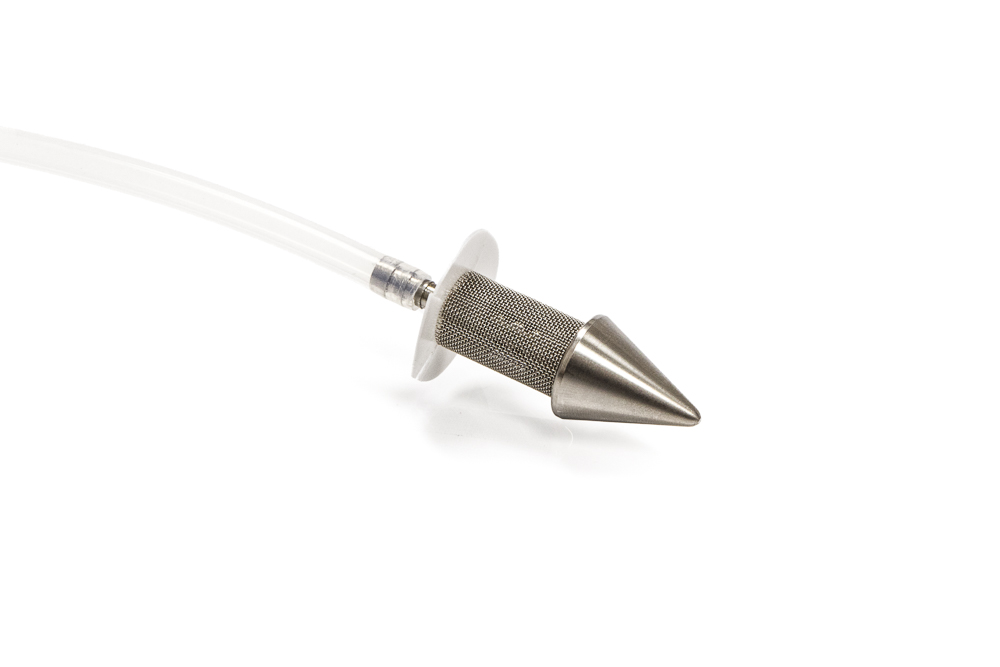

Picture of Dedicated Soil Vapor Tip, Stainless Steel

Dedicated Soil Vapor Tip, Stainless Steel

Use with 1/4" OD Tubing (Click Item for Options)
Manufacturer: ESP
SKU: SVPTC981
*
$28.95
Generate Spec Sheet
The Dedicated Gas Vapor Tips are used was originally designed for detecting hydrocarbon spills, underground storage tank and pipe leaks, landfill contamination and hazardous waste sites. The unique design and umbrella ensure an easy passage for gas entering the collection system. The umbrella assists in keeping the tip vapor inlets free of soil. The screen is used, particularly in fine-grained soils or when sampling water to prevent debris from coming inside the probe.

Specifications:

Overall Length: 2.38"

Point Max OD: 0.72"

Point Length: 0.94"

Screen Length:0.89"

Screen Diameter: 0.51"

Port hole count: 8

Barb connection: .17"-.19" ID Tube



Benefits of choosing The dedicated Sampler:

  • Long‑term or expendable sampling point: Designed to be installed and left in place, ideal for ongoing soil gas monitoring

  • Environmental hazard detection: Excellent for identifying hydrocarbon spills, underground storage tank or pipe leaks, landfill contamination, and hazardous waste sites

  • Simple installation: Use with Slide Hammer or Electric Rotary Hammer Drill fitted with GVP Drive Extensions and an Extension Drive Adapter

  • Effective soil gas flow design: Features a fluoropolymer “umbrella” that folds during insertion and automatically unfolds at depth—ensuring vapor inlets stay open and soil-free

  • Clog-resistant inlet protection: Vapor inlet holes are recessed and shielded by the drive end to prevent blockage from soil during installation

  • High-quality materials: Constructed from 300-series stainless steel with fluoropolymer umbrella; optional screen available for use in fine-grained soils or groundwater sampling

Description
The Dedicated Gas Vapor Tips are used was originally designed for detecting hydrocarbon spills, underground storage tank and pipe leaks, landfill contamination and hazardous waste sites. The unique design and umbrella ensure an easy passage for gas entering the collection system. The umbrella assists in keeping the tip vapor inlets free of soil. The screen is used, particularly in fine-grained soils or when sampling water to prevent debris from coming inside the probe.

Specifications:

Overall Length: 2.38"

Point Max OD: 0.72"

Point Length: 0.94"

Screen Length:0.89"

Screen Diameter: 0.51"

Port hole count: 8

Barb connection: .17"-.19" ID Tube



Benefits of choosing The dedicated Sampler:

  • Long‑term or expendable sampling point: Designed to be installed and left in place, ideal for ongoing soil gas monitoring

  • Environmental hazard detection: Excellent for identifying hydrocarbon spills, underground storage tank or pipe leaks, landfill contamination, and hazardous waste sites

  • Simple installation: Use with Slide Hammer or Electric Rotary Hammer Drill fitted with GVP Drive Extensions and an Extension Drive Adapter

  • Effective soil gas flow design: Features a fluoropolymer “umbrella” that folds during insertion and automatically unfolds at depth—ensuring vapor inlets stay open and soil-free

  • Clog-resistant inlet protection: Vapor inlet holes are recessed and shielded by the drive end to prevent blockage from soil during installation

  • High-quality materials: Constructed from 300-series stainless steel with fluoropolymer umbrella; optional screen available for use in fine-grained soils or groundwater sampling
