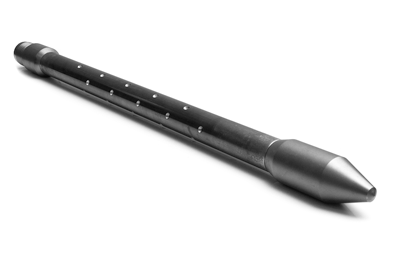

Picture of 2.25" x 5' Top Down Injection Tool

2.25" x 5' Top Down Injection Tool

Click above for Specifications
Manufacturer: ESP
Availability: 8 in stock
SKU: INJ225-TD5
$748.95
Generate Spec Sheet

Description:

ESP's own 2.25" "Top-Down" Injection Tool is driven to the top of the intended injection interval using 2-1/4" Geoprobe® Probe Rods. After the initial injection at the top of your interval, it can then be driven further and the process repeated until the bottom of the injection interval is reached. The included 2.25" x 1.75" w/ 3/4" NPT Adapter allows for hose through injection of your materials. This injection tool can also be used for "bottom-up" and through rod injection using the 2.25" Injection Pull Cap or the 2.25" Injection Cap. The horizontal injection tool has been successfully used with many compounds including ORC, HRC and Potassium Permanganate. It can be easily disassembled for decontamination and cleaning.

Specifications:


Top: Threads to 2.25" Geoprobe Rod; .75" F-NPT Thread
Middle: 5' Port Section: 1.75" OD; 102 - 3/16" Holes Drilled; 17 Holes per Row, 6 Rows
Bottom Point: 2.25" OD; 6" Length
Overall Length: 68.5"

Manufactured by ESP

Description

Description:

ESP's own 2.25" "Top-Down" Injection Tool is driven to the top of the intended injection interval using 2-1/4" Geoprobe® Probe Rods. After the initial injection at the top of your interval, it can then be driven further and the process repeated until the bottom of the injection interval is reached. The included 2.25" x 1.75" w/ 3/4" NPT Adapter allows for hose through injection of your materials. This injection tool can also be used for "bottom-up" and through rod injection using the 2.25" Injection Pull Cap or the 2.25" Injection Cap. The horizontal injection tool has been successfully used with many compounds including ORC, HRC and Potassium Permanganate. It can be easily disassembled for decontamination and cleaning.

Specifications:


Top: Threads to 2.25" Geoprobe Rod; .75" F-NPT Thread
Middle: 5' Port Section: 1.75" OD; 102 - 3/16" Holes Drilled; 17 Holes per Row, 6 Rows
Bottom Point: 2.25" OD; 6" Length
Overall Length: 68.5"

Manufactured by ESP
