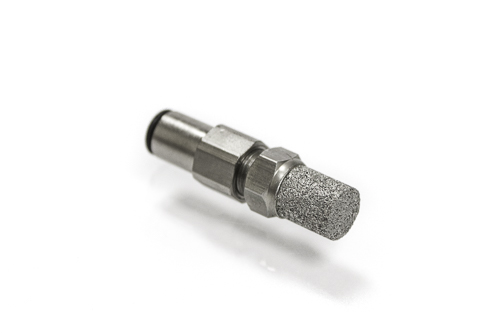

Picture of 1" Stainless Steel Implant 3/8" Speed-Fit Fitting

1" Stainless Steel Implant 3/8" Speed-Fit Fitting

Use with 3/8" OD Tubing
Manufacturer: ESP
SKU: SVPT92-SF38
$28.95
Generate Spec Sheet



ESP's Stainless Steel Soil Vapor Implant is made of Type 316SS at the porous end. Designed to be used as a vapor probe implant in vapor intrusion sampling, sub-slab sampling, soil gas sampling and more.

Specifications:

Material: 316 Stainless Steel, Buna Rubber Seal, Plastic Release Ring
Filtration Rating: 50 Micron
Dimensions: 1/2" O.D. x 2" Length
Connection: 3/8" O.D. Tubing "Speedfit" push-in fitting.
Maximum Temperature: 500°F

Applications:

  • Vapor Intrusion Sampling
  • Permanent Soil Gas Monitoring
  • Air Sparging
  • Pressure Measurement Point in Vacuum Testing
  • UST Monitoring















Description



ESP's Stainless Steel Soil Vapor Implant is made of Type 316SS at the porous end. Designed to be used as a vapor probe implant in vapor intrusion sampling, sub-slab sampling, soil gas sampling and more.

Specifications:

Material: 316 Stainless Steel, Buna Rubber Seal, Plastic Release Ring
Filtration Rating: 50 Micron
Dimensions: 1/2" O.D. x 2" Length
Connection: 3/8" O.D. Tubing "Speedfit" push-in fitting.
Maximum Temperature: 500°F

Applications:

  • Vapor Intrusion Sampling
  • Permanent Soil Gas Monitoring
  • Air Sparging
  • Pressure Measurement Point in Vacuum Testing
  • UST Monitoring
