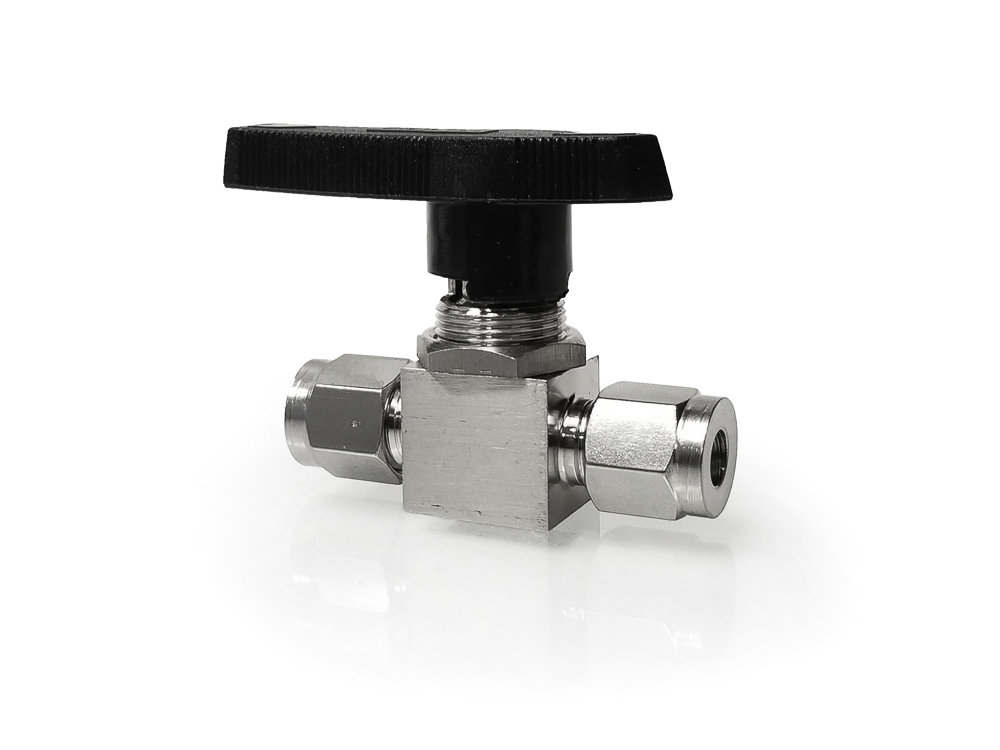

Picture of 1/4 in Mini Ball Valve, Swagelok & Parker Compatible Compression 304 Stainless Steel

1/4 in Mini Ball Valve, Swagelok & Parker Compatible Compression 304 Stainless Steel

Use with 1/4 OD Tubing, 40 Series Handle (As low as $46.80)
Manufacturer: ESP
SKU: SVPTSS05
Old price: $126.95
$67.95
Generate Spec Sheet

Specifications:

  • 40 Series compact nylon Handle
  • 1.5" Handle Swing Radius
  • 2500 psi pressure up to 60°C
  • Use with 1/4" OD tube or 1/4" OD Pipe
  • Compatible with Swagelok USA Compression Nuts and 2-piece Ferrules
  • Comparable to Swagelok SS-42GS4 or SS42GS4
  • Comparable to Parker 4A-MB4LPFA-SSP

The compact design of these valves makes use in tight spaces easier than ever. These Stainless Steel valves allow bi-directional flow, easy to clean and purge. The one-piece body eliminates multiple seal points. Stem design allows packing adjustment with the valve in-line and panel mounting. Handle shows orifice position. Orifice openings: 1/4” valve - 0.125”.
Ball Valve, Stainless Steel, 1/4"
Description

Specifications:

  • 40 Series compact nylon Handle
  • 1.5" Handle Swing Radius
  • 2500 psi pressure up to 60°C
  • Use with 1/4" OD tube or 1/4" OD Pipe
  • Compatible with Swagelok USA Compression Nuts and 2-piece Ferrules
  • Comparable to Swagelok SS-42GS4 or SS42GS4
  • Comparable to Parker 4A-MB4LPFA-SSP

The compact design of these valves makes use in tight spaces easier than ever. These Stainless Steel valves allow bi-directional flow, easy to clean and purge. The one-piece body eliminates multiple seal points. Stem design allows packing adjustment with the valve in-line and panel mounting. Handle shows orifice position. Orifice openings: 1/4” valve - 0.125”.
Ball Valve, Stainless Steel, 1/4"
