12" PVC Bell Pipe Elevators, Set of 2

Sold in sets of 2

Our PVC Elevators are the most time-efficient and safest way to maneuver your PVC Bell End Pipe for Vertical installation or retrieval. Fitted with a Zinc plated, Grade 43 chain connected to 5/16" Form Welded Steel, these elevators are designed to last.

Installation

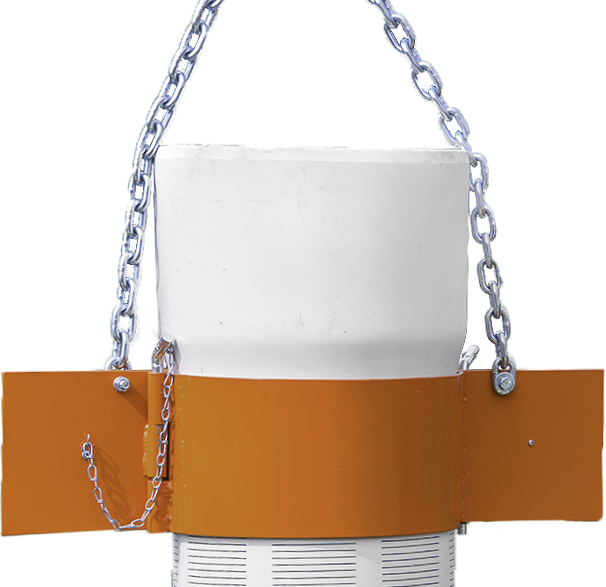

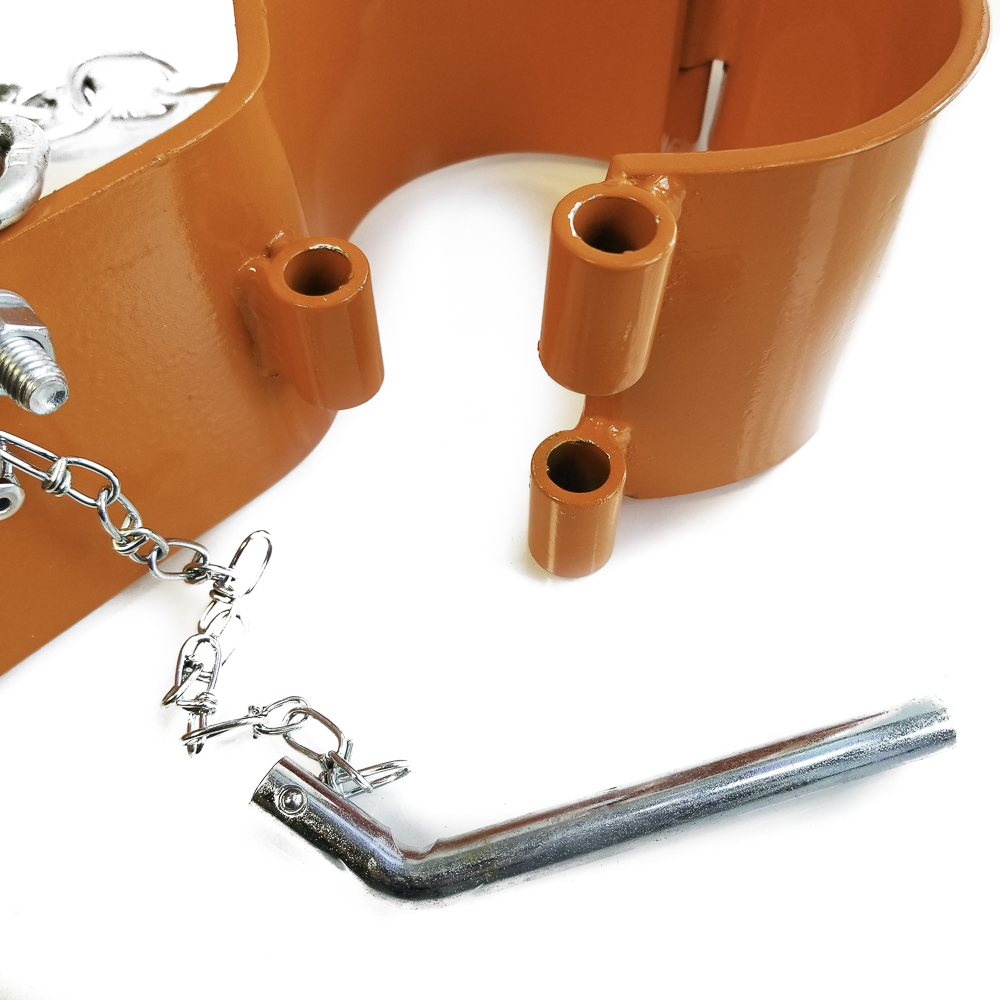

Each elevator has two sides that open. both sides are healed together by a pin on each side. Once the elevator is positioned around the pipe and curved plates are brought together the pin is inserted to hold the two pieces together. The elevator can be lifted by a boom or crane to the shoulder of the bell pipe where it will hold in place until the pin is removed.

Specifications

Pipe Size:12"
Schedule: 40 or 80
Material: Steel
Max Load: 3000lbs
